Picket Fencing Gates

AUSTRALIAN MADE

Eco-Friendly-Icon-White-New-2

ECO FRIENDLY

Beautiful. Simple. Practical.
This is the future of domestic fencing.

PVC picket fencing gates are made using the same materials as your fence. You can choose from a range of colours or styles that either match or can be created to stand-out creating a feature. All hardware including hinges and latches are manufactured in Australia by D&D Technologies.

Jabiru Picket Fences Gate Styles

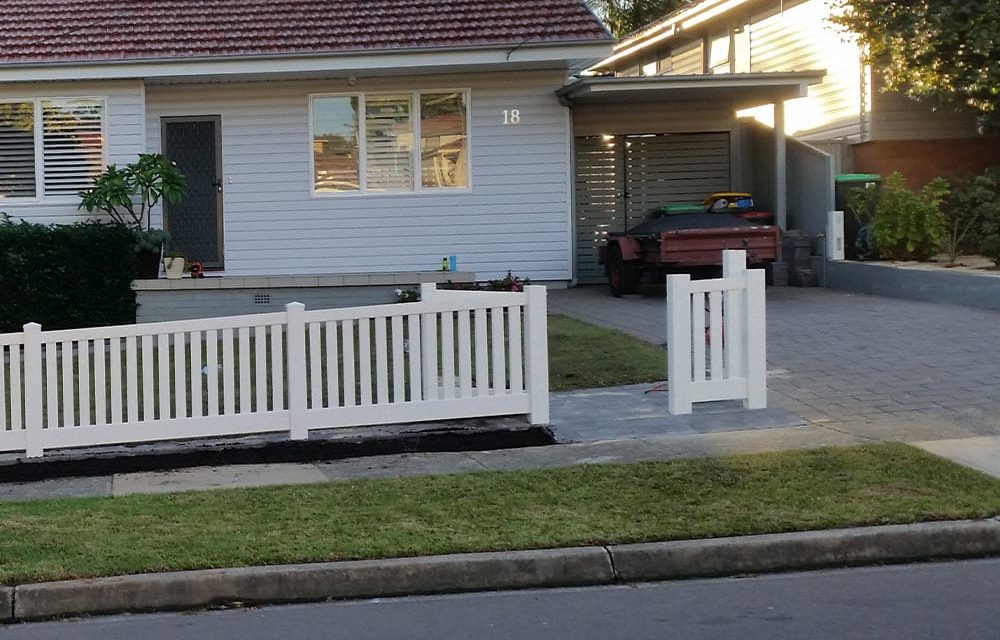

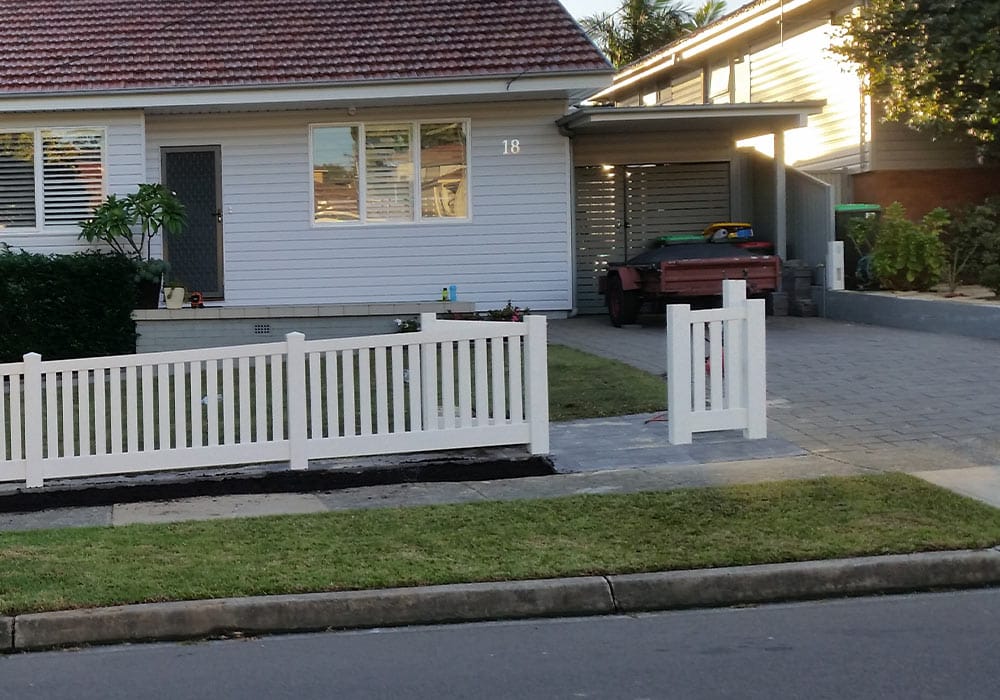

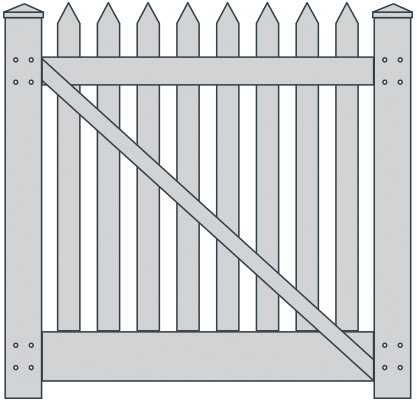

Jabiru Single Gate

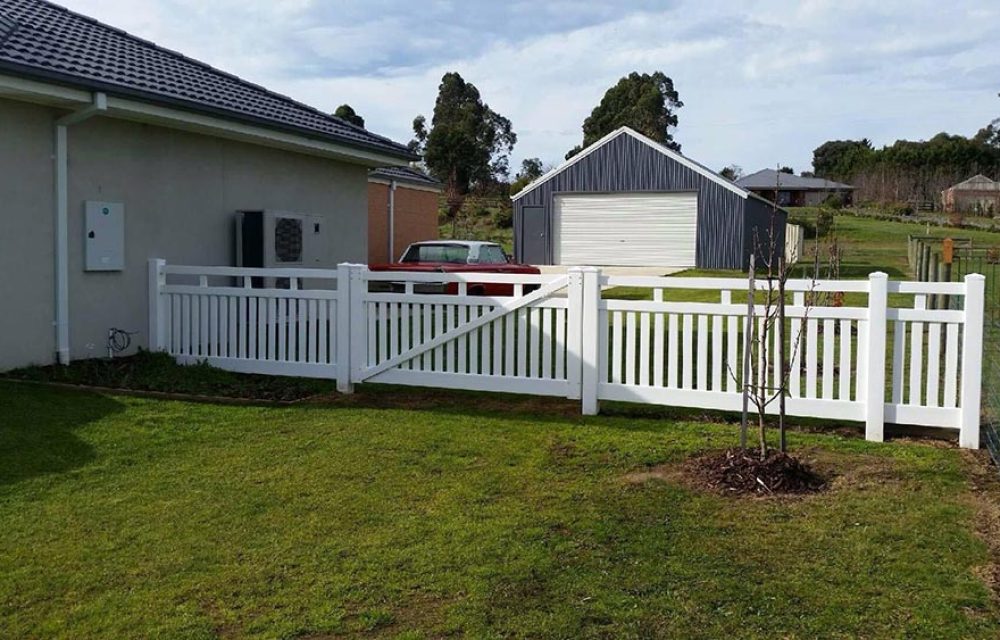

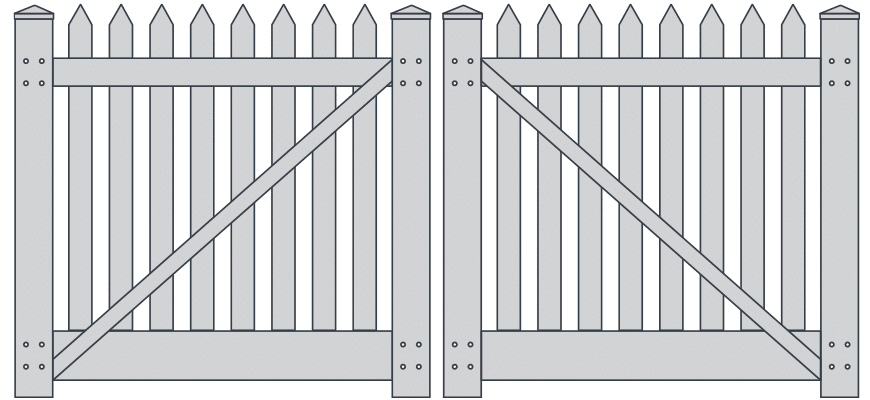

Jabiru Double Gate

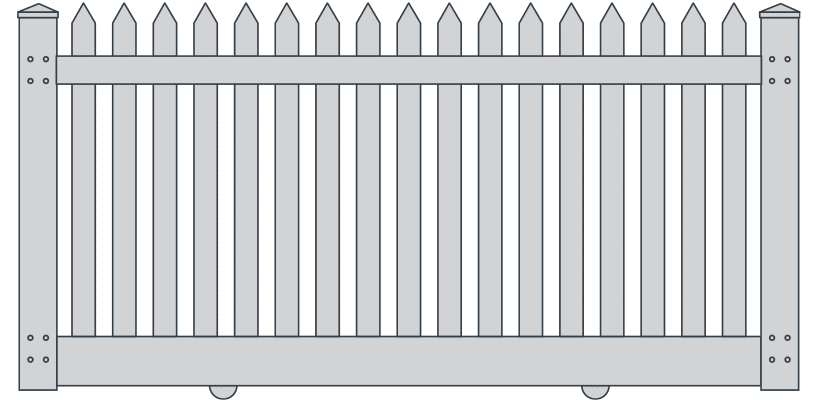

Jabiru Sliding Gate

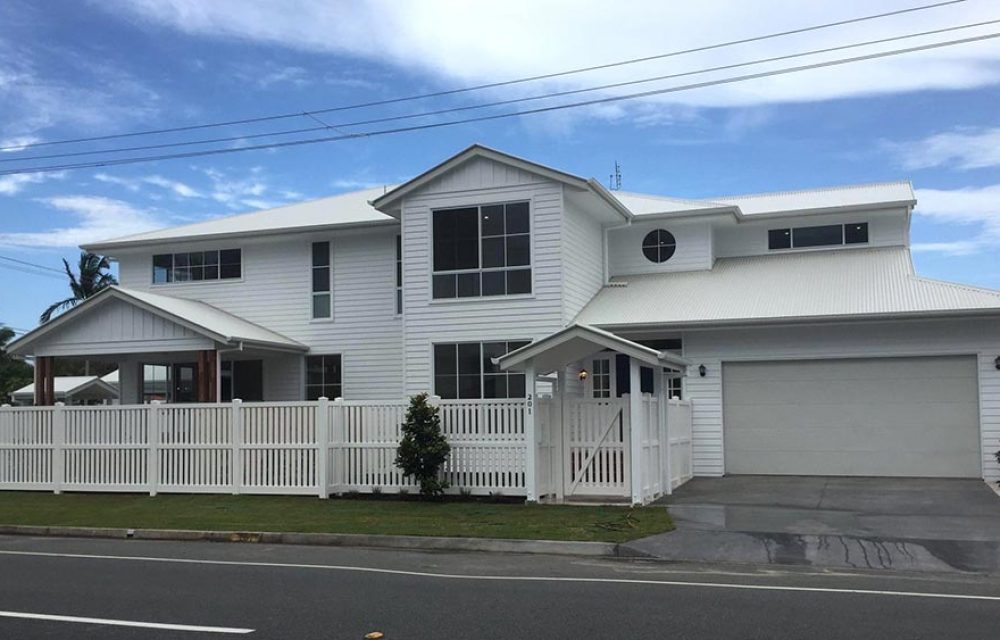

Jabiru Sliding Gate above 1.4m

Bellbrae Picket Fences Gate Styles

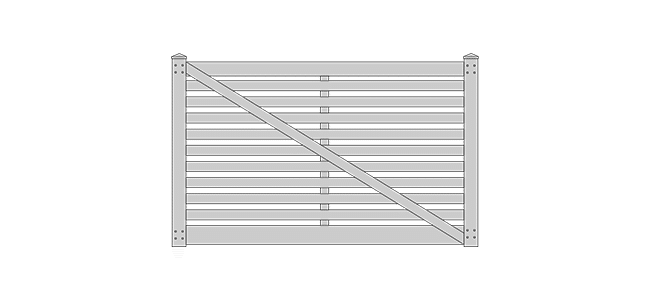

Bellbrae Single Gate

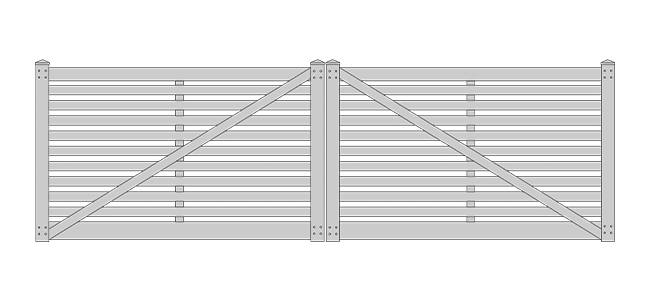

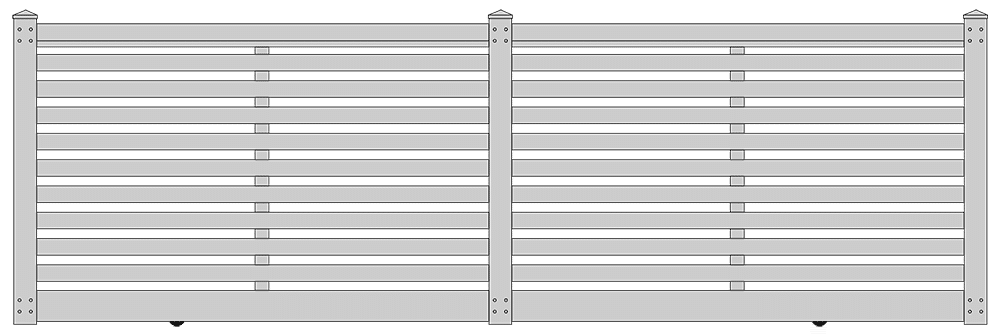

Bellbrae Sliding Double Gate
Sliding Double Gate

Quality Gates

The hardware used is specifically designed for use with PVC fencing and is made of the highest quality materials. The hinges used are adjustable up, down, in and out. Meaning, you can easily and accurately fit your gates. Our gates are made using a steel subframe, and depending on the size of the gate we will also incorporate a steel cross brace.

Gates use the same Vinyl profiles as your fencing, meaning your gate will seamlessly blend into your fence. Or can be made to stand out.

Our dedicated fabrication team can help you design the perfect gate for your fence.

Gate Design Flexibility

Hinged gates can be made from 0.85 wide to 2.4m wide and can be configured as either a single gate or a double gate. Single gates can be hinged on either side of the gate, giving you flexibility during installation. You can also choose between using a latch or a drop bolt to hold your gate in place. Or a combination of both. The hinges can be adjusted to hold the gate open, or can be set to swing the gate closed and latch when released.



Sliding gates can be made from 2.0m to 6.0m long. All sliding gates are made using the same profiles as your fence and are built using steel inserts. Wheels are pre-fitted and tracking is supplied with the gate. A latch can be fitted to sliding gates or an automatic gate opener can be easily fitted to the base of the gate.



Support posts and wheels are also provided with sliding gates to ensure that the gate is solid when either open or closed.

Think Fencing PVC Benefits

We’ve heard all the concerns, perhaps the most popular is; plastic is cheap and won’t last outside in the Australia conditions. If this was true do you think we would offer a 30 year warranty on all our plastic (PVC) fencing.

DIY Installation

So you’re reasonably handy and would like to save some save money, then great news our PVC fencing is easy to install.

ECO Friendly

Despite what you may think about plastics, the PVC used to make out fences are in-fact eco friendly and completely recyclable.

Australian Made

All Think Fencing products are manufactured here in Australia at our Bellarine based manufacturing complex in Victoria.

Lifetime Warranty*

Think Fencing offers a limited *30 year warranty for all PVC Fencing products.

Never Paint Again

Think Fencing doesn’t require painting ever, simple choose from our large colour range and relax knowing it will never require painting.

Graffiti Resistant

We all know fences are easy targets for graffiti artists, rest easy knowing our fences are coated in a graffiti resistant coating.

Picket Fence Gate Colour Range

White
Cream
Beech
Beige
Night Mist
Grey Ridge
Winter Green
Red Oak
Delux
Woodgrain Pine
Red Gum

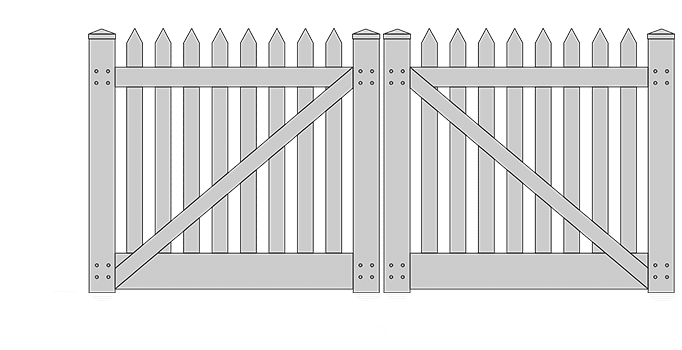

Picket Fence Gate Standard Sizing

Single Gates

WIDTH
HEIGHT OPTIONS
900mm
900mm, 1200mm, 1400mm, 1600mm, 1800mm
1200mm
900mm, 1200mm, 1400mm, 1600mm, 1800mm
1500mm
900mm, 1200mm, 1400mm, 1600mm, 1800mm
2350mm
900mm, 1200mm, 1400mm, 1600mm, 1800mm

Double Gates

WIDTH
HEIGHT OPTIONS
2400mm (2 x 1200mm)
900mm, 1200mm, 1400mm, 1600mm, 1800mm
3000mm (2 x 1500mm)
900mm, 1200mm, 1400mm, 1600mm, 1800mm
4000mm (2 x 2000mm)
900mm, 1200mm, 1400mm, 1600mm, 1800mm
4700mm (2 x 2350mm)
900mm, 1200mm, 1400mm, 1600mm, 1800mm

Sliding Gates

WIDTH
HEIGHT OPTIONS
3.0m or less
900mm, 1200mm, 1400mm, 1600mm, 1800mm
3.1m – 3.5m
900mm, 1200mm, 1400mm, 1600mm, 1800mm
3.6m – 4.0m
900mm, 1200mm, 1400mm, 1600mm, 1800mm
4.1m – 4.5m
900mm, 1200mm, 1400mm, 1600mm, 1800mm
4.6m – 5.0m
900mm, 1200mm, 1400mm, 1600mm, 1800mm
5.1m – 5.5m
900mm, 1200mm, 1400mm, 1600mm, 1800mm
5.6m – 6.0m
900mm, 1200mm, 1400mm, 1600mm, 1800mm

Picket Fencing Gate Specifications

Single Gates

Gates will have a cross brace on both sides of the gate

Up to 1.4m high:
  • Each gate includes hinges and a single-sided latch from D&D Technologies.
1.4m high and above:
  • Each gate includes hinges and a double-sided latch from D&D Technologies.
1.5m or above in width:
  • Comes with an additional hinge for extra stability.
Options and extras:
  • Hinges and Latches available in Black or White.
  • Double Side, Handle & Top Pull Latches and Drop Bolts available on request.
  • Automatic opening systems available on request for selected styles.
JABIRU STYLE

Double Gates

Gates will have a cross brace on both sides of the gate

Up to 1.4m high:
  • Each gate includes hinges, a single-sided latch and 2 x drop bolts from D&D Technologies.
1.4m high and above:
  • Each gate includes hinges a double-sided latch and 2 x drop bolts from D&D Technologies.
3.0m or above in width:
  • Comes with an additional hinge for extra stability. (one extra hinge per gate)
Options and extras:
  • Hinges and Latches available in Black or White.
  • Double Side, Handle & Top Pull Latches available.
  • Automatic opening systems available on request.
JABIRU STYLE

Sliding Gates

Opening up to 3.0m
  • An opening up to and including 3.0m requires an additional 500mm extra on the gate (e.g. a 3.0m opening requires a 3.5m gate).
  • Each sliding gate includes Tracking, Wheels (pre-installed), 1x Bridge Roller Guide and 2x Blank Post with attached End Stops.
Opening over 3.0m:
  • Any opening over 3.0m requires an additional 800mm (e.g. a 5.0m opening requires a 5.8m gate)
  • Each sliding gate includes Tracking, Wheels (pre-installed), 2x Bridge Roller Guide and 2x Blank Post with attached End Stops.
Options and extras:
  • Sliding Gates will come with a Drop Bolt if manually operated, or an Aluminium Rail to attach racking to if Automated (racking not supplied).
  • Automatic opening system available on request.
JABIRU STYLE SLIDING GATE
