Timberline Post & Rail
Fencing Gates
The Natural Beauty of Wood.
The Durability of Plastic.
Think Fencing boasts Australia’s largest range of PVC fencing colours and styles, including Timberline, the post and rail fence for the 21st century. Created from non-toxic vinyl, Timberline combines the visual beauty of freshly painted timber with the strength and resilience of highly advanced extrusion technologies.
Timberline is also the perfect solution for horse safe fencing that looks the part whilst providing paramount safety to your horse.

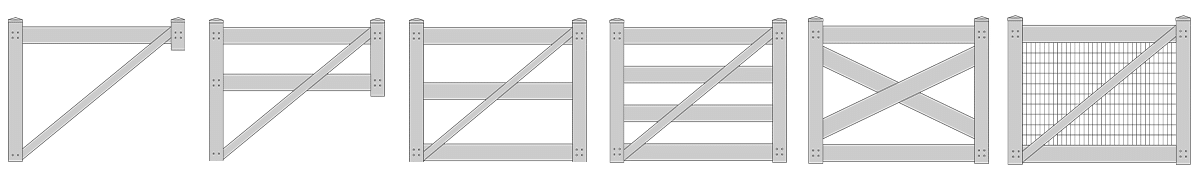

Post & Rail Fencing Gate Styles
Think Fencing PVC Benefits
We’ve heard all the concerns, perhaps the most popular is; plastic is cheap and won’t last outside in the Australia conditions. If this was true do you think we would offer a 30 year warranty on all our plastic (PVC) fencing.
DIY Installation
So you’re reasonably handy and would like to save some save money, then great news our PVC fencing is easy to install.
ECO Friendly
Despite what you may think about plastics, the PVC used to make out fences are in-fact eco friendly and completely recyclable.
Australian Made
All Think Fencing products are manufactured here in Australia at our Bellarine based manufacturing complex in Victoria.
Lifetime Warranty*
Think Fencing offers a limited *30 year warranty for all PVC Fencing products.
Never Paint Again
Think Fencing doesn’t require painting ever, simple choose from our large colour range and relax knowing it will never require painting.
Graffiti Resistant
We all know fences are easy targets for graffiti artists, rest easy knowing our fences are coated in a graffiti resistant coating.
Post and Rail Fence Colour Range
Post & Rail Gate Standard Sizing

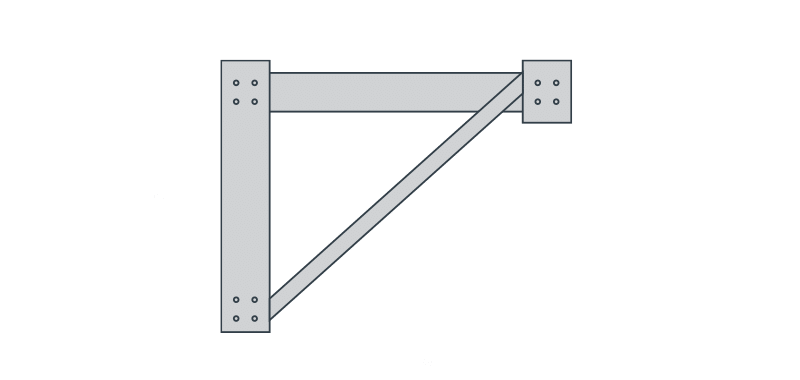

Single Gates
WIDTH | HEIGHT OPTIONS |
|---|---|
1000mm | 1400mm |
1500mm | 1400mm |
2000mm | 1400mm |
2350mm | 1400mm |

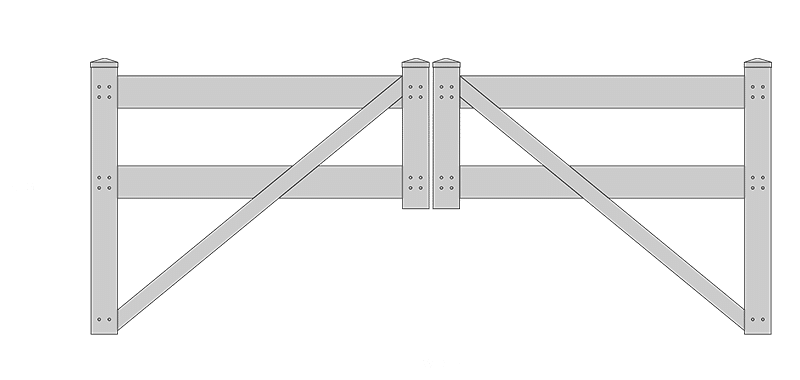

Double Gates
WIDTH | HEIGHT OPTIONS |
|---|---|
2000mm (2 x 1000mm) | 1400mm |
3000mm (2 x 1500mm) | 1400mm |
4000mm (2 x 2000mm) | 1400mm |
4700mm (2 x 2350mm) | 1400mm |

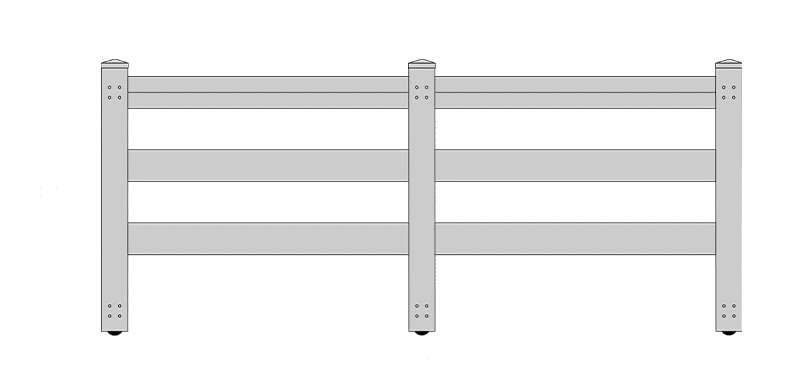

Sliding Gates
WIDTH | HEIGHT OPTIONS |
|---|---|
3.0m or less | 1400mm |
3.1m – 3.5m | 1400mm |
3.6m – 4.0m | 1400mm |
4.1m – 4.5m | 1400mm |
4.6m – 5.0m | 1400mm |
5.1m – 5.5m | 1400mm |
5.6m – 6.0m | 1400mm |
Other heights available on request.
Post & Rail Gate Full Specifications
Single Gates

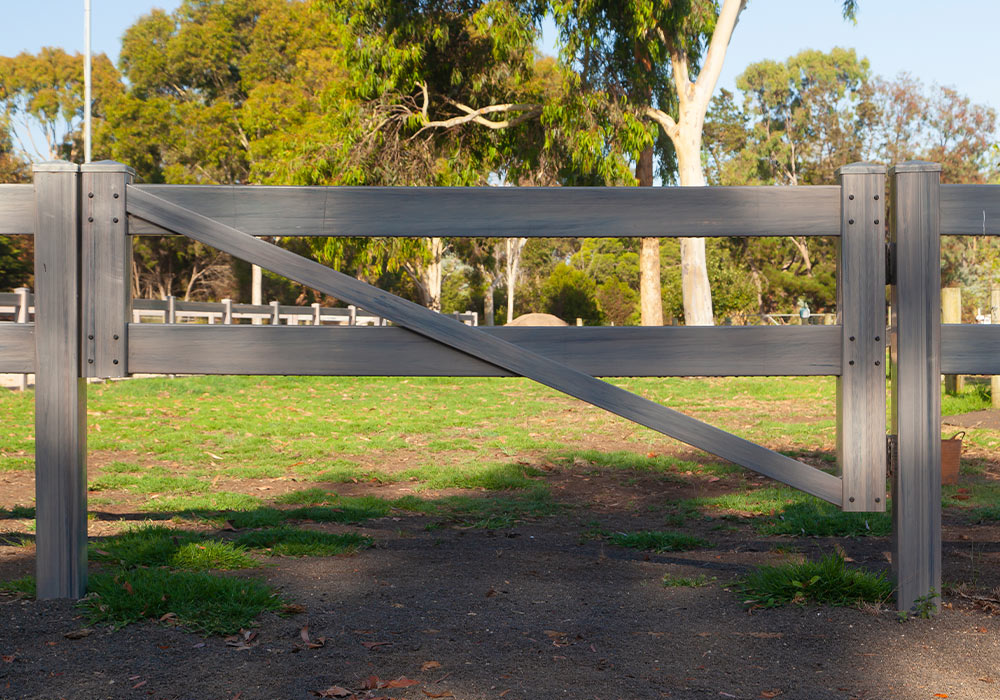

Gates will have a cross brace on both sides of the gate
Up to 1.4m high:
- Each gate includes hinges and a single-sided latch from D&D Technologies.
1.4m high and above:
- Each gate includes hinges and a double-sided latch from D&D Technologies.
1.5m or above in width:
- Comes with an additional hinge for extra stability.
Options and extras:
- Hinges and Latches available in Black or White.
- Double Side, Handle & Top Pull Latches and Drop Bolts available on request.
- Automatic opening systems available on request for selected styles.

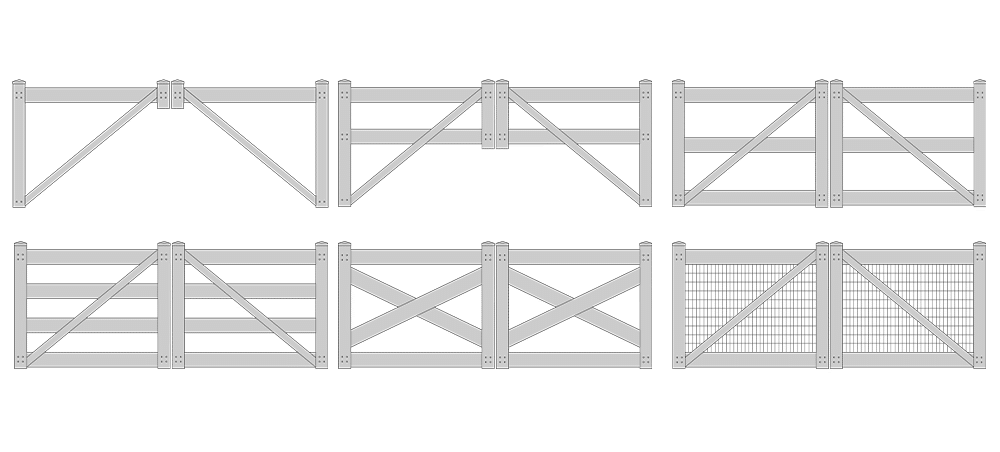

Double Gates
Gates will have a cross brace on both sides of the gate
Up to 1.4m high:
- Each gate includes hinges, a single-sided latch and 2 x drop bolts from D&D Technologies.
1.4m high and above:
- Each gate includes hinges a double-sided latch and 2 x drop bolts from D&D Technologies.
3.0m or above in width:
- Comes with an additional hinge for extra stability. (one extra hinge per gate)
Options and extras:
- Hinges and Latches available in Black or White.
- Double Side, Handle & Top Pull Latches available.
- Automatic opening systems available on request.
Sliding Gates
Opening up to 3.0m
- An opening up to and including 3.0m requires an additional 500mm extra on the gate (e.g. a 3.0m opening requires a 3.5m gate).
- Each sliding gate includes Tracking, Wheels (pre-installed), 1x Bridge Roller Guide and 2x Blank Post with attached End Stops.
Opening over 3.0m:
- Any opening over 3.0m requires an additional 800mm (e.g. a 5.0m opening requires a 5.8m gate)
- Each sliding gate includes Tracking, Wheels (pre-installed), 2x Bridge Roller Guide and 2x Blank Post with attached End Stops.
Options and extras:
- Sliding Gates will come with a Drop Bolt if manually operated, or an Aluminium Rail to attach racking to if Automated (racking not supplied).
- Automatic opening system available on request.
