Mystique Panel Fencing Product Information

Mystique Panel Fence Styles

Mystique Panel Fence
Mystique Panel Fence With Lattice

Mystique Panel Fence Full Specifications

Mystique Panel Fence

Dimensions

  • Quote based on 2.34m panels.
  • Panel height measured from ground to top of post (excluding cap).
  • One post and post cap included with each panel.
  • Additional post required at the end of each fence run or where gate is required.

Top Rail Height: 73mm below post (including cap).

Custom designs, heights, and colours available on request.

Each Panel Includes

  • 1 x Post and Post Cap (127mm x 127mm).
  • 1 x Plinth Rail (150mm x 50mm).
  • 1 x Steel Insert for Plinth Rail.
  • 1 x Top Rail (88mm x 51mm).
  • 1 x Steel Insert for Top Rail – colour only.
  • 15 x Mystique Panelling (145mm x 22mm).
  • 2 x Top and Bottom Pollock Channel at 2290mm.
  • 2 x Side Pollock Channel, 420mm less than post height (excluding cap).
  • Tek Screws to connect Pollock Channel to Top and Bottom Rails.
  • Tek Screws to connect Rails to Posts.

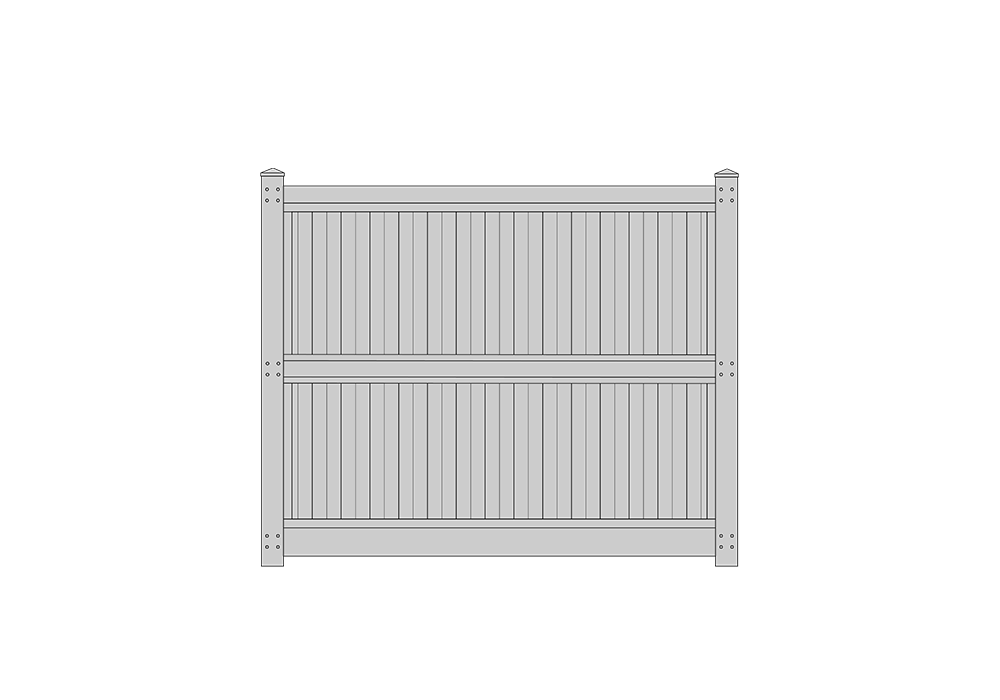

  • Panel height above 2.0m includes a 88mm x 51mm mid rail.
Up to 2.1m above ground
Above 2.1m requires a mid-rail

Mystique Panel Fence with Lattice

Dimensions

  • Quote based on 2.34m panels.
  • Panel height measured from ground to top of post (excluding cap).
  • One post and post cap included with each panel.
  • Additional post required at the end of each fence run or where gate is required.

Top Rail Height: 73mm below post (including cap).

Custom designs, heights, and colours available on request.

Lattice Section

  • 323mm High – Top of Rail (excluding cap) to top of Mid Rail.
  • 17 pickets at a 45mm spacing.
  • Included within the height of the fence – not on top.
  • Example: 1.8m high fence will be solid to 1.5m and Lattice 1.5-1.8m.
  • 76mm x 22mm Picket available in White and Colour.
  • 38mm x 38mm Picket available in White only.

Each Panel Includes

  • 1 x Post and Post Cap (127mm x 127mm).
  • 1 x Plinth Rail (150mm x 50mm).
  • 1 x Steel Insert for Plinth Rail.
  • 1 x Top Rail (88mm x 51mm).
  • 1 x Steel Insert for Top Rail – colour only.
  • 1 x Mid Rail (88mm x 51mm)
  • 15 x Mystique Panelling (145mm x 22mm).
  • 2 x Top and Bottom Pollock Channel at 2290mm.
  • 2 x Side Pollock Channel, 670mm less than post height (excluding cap).
  • Tek Screws to connect Pollock Channel to Top and Bottom Rails.
  • Tek Screws to connect Rails to Posts.
  • Panel height above 2.1m include an additional 88mm x 51mm mid rail.
Up to 2.1m above ground
Above 2.1m requires a mid-rail
