Kestral Picket Fence Range


Picket Fence Colour Range

Night Mist
Grey Ridge
Winter Green
Red Oak
Woodgrain Pine
Red Gum

Kestrel Picket Fence Specifications

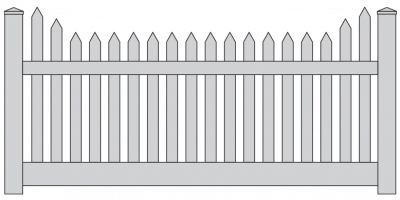

Kestrel Picket Fence


  • Price based on 2.39m panels.
  • Panel height measured from ground level to top of post (excluding cap).
  • One post and post cap included with each panel.
  • Additional post required at the end of each fence run or where gate is required.
  • Highest Picket Height: Level with post height (including cap).
  • Lowest Picket Height: 153mm below post height (including cap).
  • Picket Step Down: 51mm each step.
  • Top Rail Height: 323mm below post for fences up to 1.5m above ground.
  • Top Rail Height: 423mm below post for fences taller than 1.5m above ground.
  • 50mm gap between ground and bottom of plinth rail.
  • Colour panels have a steel insert in top rail.
  • Custom designs, heights and colours available on request.

Each Panel Includes

  • 1 x Post and Post Cap (127mm x 127mm).
  • 1 x Plinth Rail (150mm x 50mm).
  • 1 x Steel Insert for Plinth Rail.
  • 1 x Top Rail (88mm x 51mm).
  • 1 x Steel Insert for Top Rail – Colours only.
  • 18 x Pickets and Picket Caps (76mm x 22mm) at 45mm spacing.
  • Panel height above 1.8m include a 88mm x 51mm mid rail.

This fence design can be used up to the height of 1.8m.

Above the height of 1.8m requires a mid rail.
