Bellbrae Screen Fence Range
Picket Fence Colour Range
Bellbrae Fence Specifications

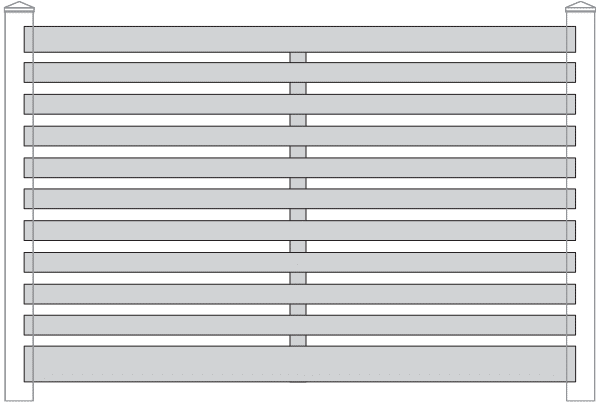

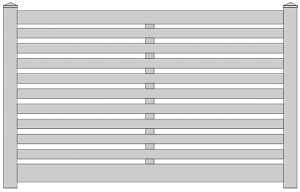

Bellbrae Privacy Screen Fence
Dimensions
- 2.39m panel width based on (centre of indicative post to post).
- Panel height measured from ground to top of post (excluding cap).
- 127 x 127mm post and post caps are to be purchased separately.
Top Rail Height: 73mm below post (including cap).
Custom designs, heights, and colours available on request.
Each Panel Includes
- 1 x Plinth Rail (150mm x 50mm).
- 1 x Steel Insert for Plinth Rail.
- 1 x Top Rail (88mm x 51mm).
- 1 x Steel Insert for Top Rail – colours only.
- Pickets (76mm x 22mm) at 19mm spacing. Quantities vary based on fence height:
- 0.9m: 6 horizontal pickets
- 1.2m: 9 horizontal pickets
- 1.4m: 11 horizontal pickets
- 1.6m: 13 horizontal pickets
- 1.8m: 15 horizontal pickets
- Rear Brace (76mm x 22mm)
- Tek Screws to fix Rear Brace.
Please note: posts and post caps are not included in a fence panel, they are to be purchase separately.
This fence design can be used up to the height of 2m.
WIDTH | HEIGHT |
|---|---|
2390mm | 900mm |
2390mm | 1200mm |
2390mm | 1400mm |
2390mm | 1600mm |
2390mm | 1800mm |
