Toucan Picket Fence Range
Picket Fence Colour Range
Toucan Picket Fence Specifications

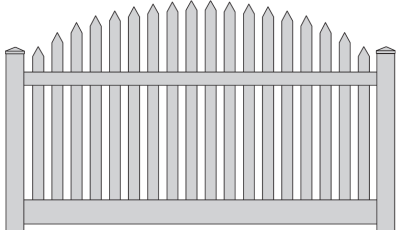

Toucan Picket Fence
Dimensions
- 2.39m panel width based on (centre of indicative post to post).
- Panel height measured from ground level to top of post (excluding cap).
- 127 x 127mm post and post caps are to be purchased separately.
- Highest Picket Height: 355mm above post height (including cap).Ā
- Lowest Picket Height: Level with post height (including cap).
- Picket Step Down: Various.
- Top Rail Height: 173mm below post (including cap).
- 50mm gap between ground and bottom of plinth rail.
- Colour panels have a steel insert in top rail.
- Custom designs, heights and colours available on request.
Each Panel Includes
- 1 x Plinth Rail (150mm x 50mm).
- 1 x Steel Insert for Plinth Rail.
- 1 x Top Rail (88mm x 51mm).
- 1 x Steel Insert for Top Rail – Colours only.
- 18 x Pickets and Picket Caps (76mm x 22mm) at 45mm spacing.Ā
- Panel height above 1.5m include a 88mm x 51mm mid rail.
Please note: posts and post caps are not included in a fence panel, they are to be purchase separately.
This fence design can be used up to the height of 1.5m.
