Kestral Picket Fence Range

Picket Fence Colour Range

Kestrel Picket Fence Specifications

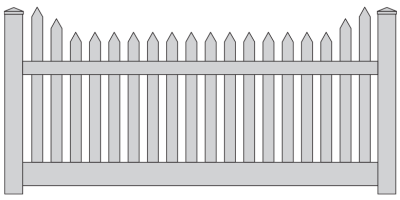

Kestrel Picket Fence

Dimensions

2.39m panel width based on (centre of indicative post to post).
Panel height measured from ground level to top of post (excluding cap).
127 x 127mm post and post caps are to be purchased separately.
Highest Picket Height: Level with post height (including cap).
Lowest Picket Height: 153mm below post height (including cap).
Picket Step Down: 51mm each step.
Top Rail Height: 323mm below post for fences up to 1.5m above ground.
Top Rail Height: 423mm below post for fences taller than 1.5m above ground.
50mm gap between ground and bottom of plinth rail.
Colour panels have a steel insert in top rail.
Custom designs, heights and colours available on request.

Each Panel Includes

1 x Plinth Rail (150mm x 50mm).
1 x Steel Insert for Plinth Rail.
1 x Top Rail (88mm x 51mm).
1 x Steel Insert for Top Rail – Colours only.
18 x Pickets and Picket Caps (76mm x 22mm) at 45mm spacing.
Panel height above 1.8m include a 88mm x 51mm mid rail.

Please note: posts and post caps are not included in a fence panel, they are to be purchase separately.

This fence design can be used up to the height of 1.8m.

Above the height of 1.8m requires a mid rail.
