Rosella Picket Fence Specifications

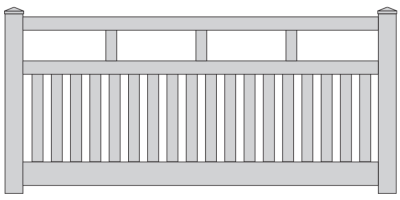

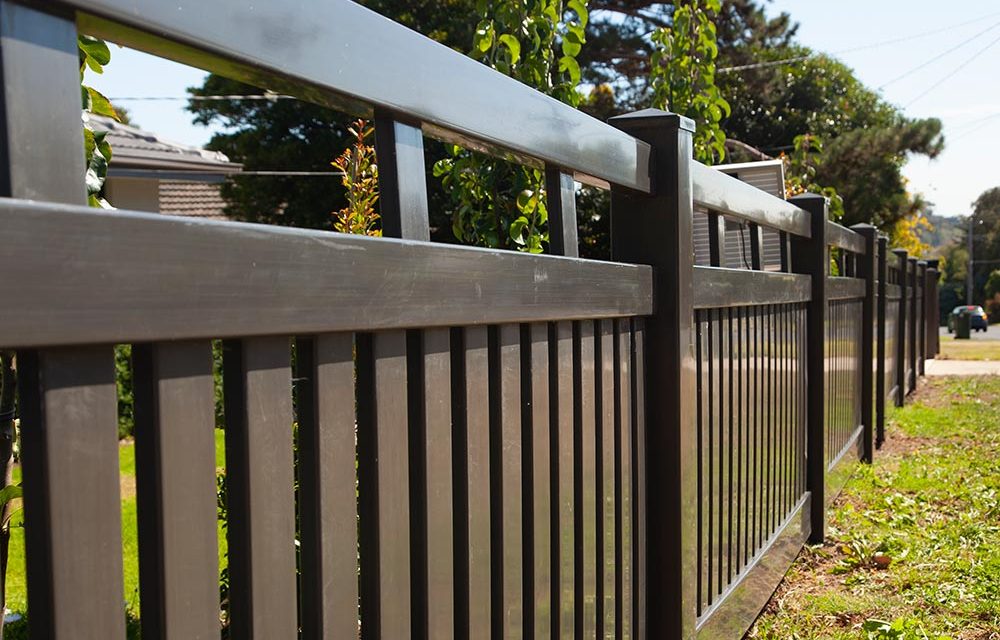

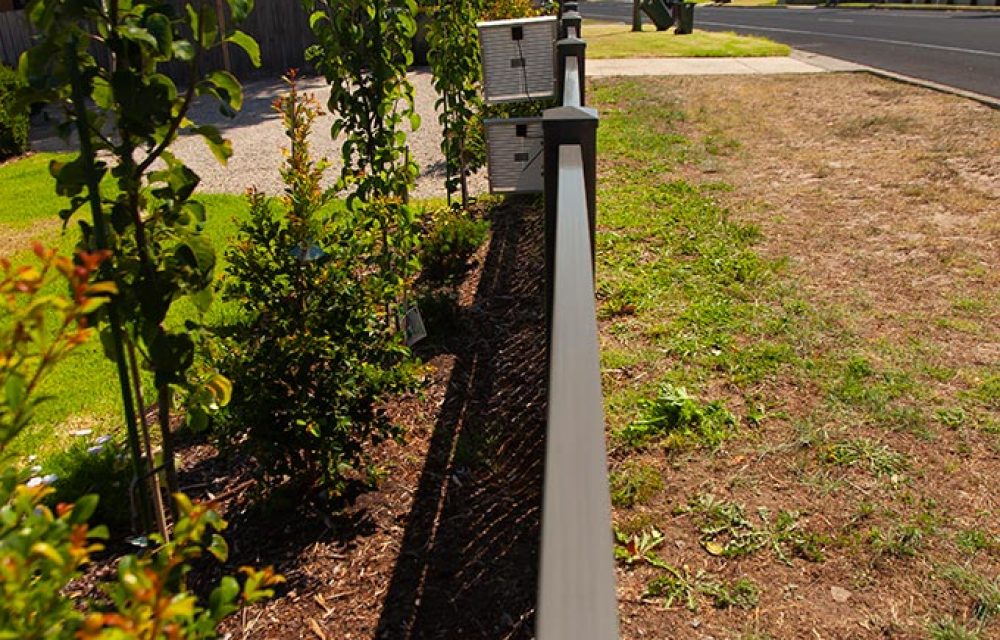

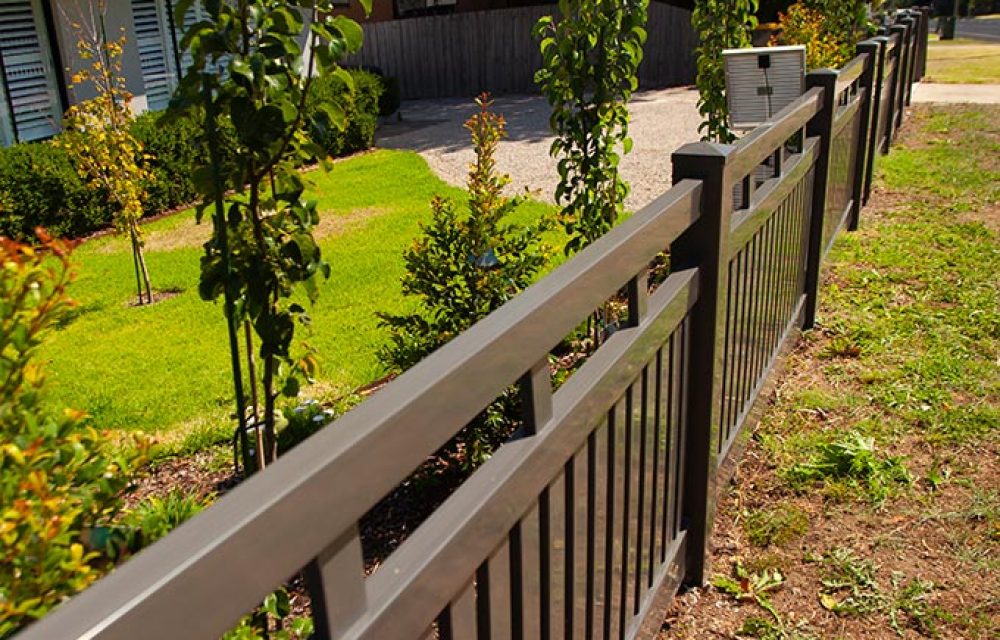

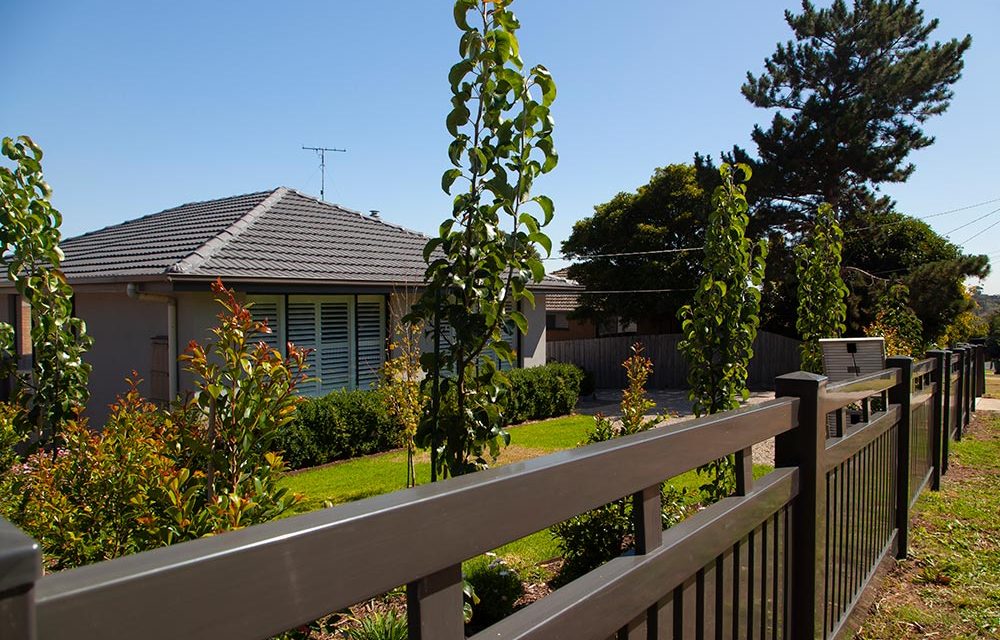

Rosella Picket Fence
Dimensions
- 2.39m panel width based on (centre of indicative post to post).
- Panel height measured from ground level to top of post (excluding cap).

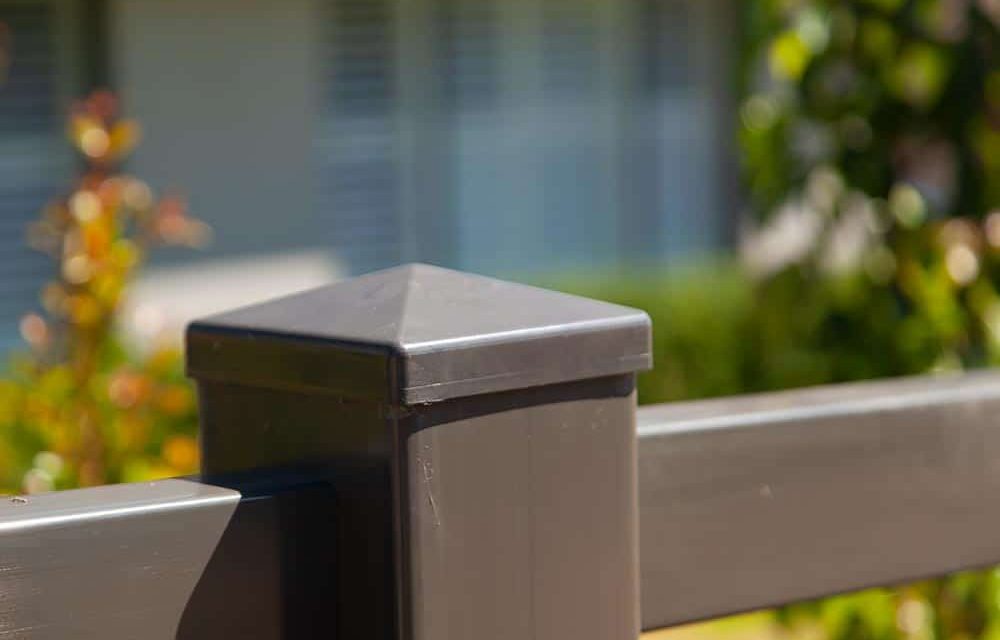

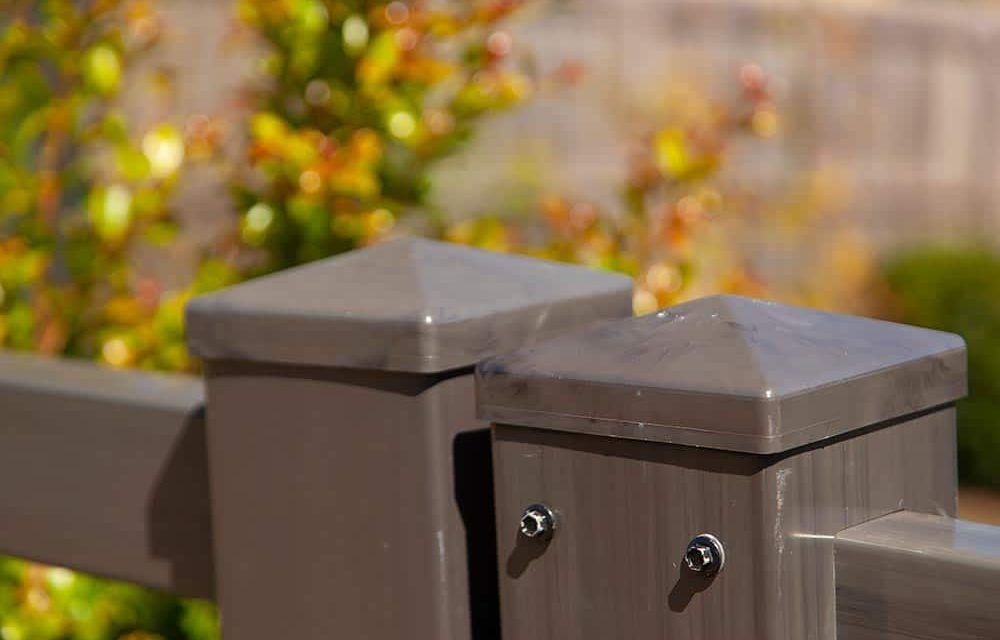

- 127 x 127mm post and post caps are to be purchased separately.

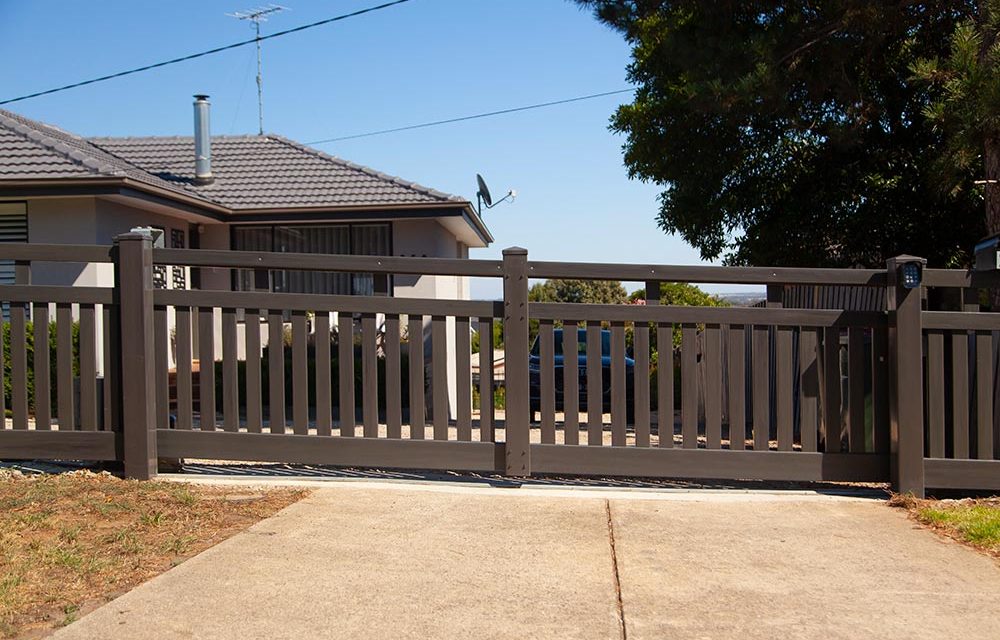

- Additional post required at the end of each fence run or where gate is required.
- Top Rail Height: 73mm below post (including cap).
- Distance between Top and Mid Rail: 122mm for fences 1.4m above ground.
- Distance between Top and Mid Rail: 222mm for fences taller than 1.5m above ground.
- 50mm gap between ground and bottom of plinth rail.
- Panels have a steel insert in top rail.
- Custom designs, heights and colours available on request.
Each Panel Includes
- 1 x Plinth Rail (150mm x 50mm).
- 1 x Steel Insert for Plinth Rail.
- 2 x Top Rail (88mm x 51mm).
- 1 x Steel Insert for Top Rail – Colours only.
- 18 x Pickets (76mm x 22mm) at 45mm spacing.
- 3 x 200mm Pickets for fence up to 1.4m above ground – 509mm picket spacing.
- 3 x 300mm Pickets for fence taller than 1.4m above ground
- 509mm picket spacing.
- Panel height above 1.8m include an additional 88mm x 51mm mid rail.
Please note: posts and post caps are not included in a fence section, they are to be purchase separately.
This fence design can be used up to the height of 1.8m.
