Jabiru Picket Fence Range

    Jabiru-Picket-Fence-Style-Short

    Picket Fence Colour Range

    White
    Cream
    Night Mist
    Grey Ridge
    Delux
    Woodgrain Pine
    Red Gum

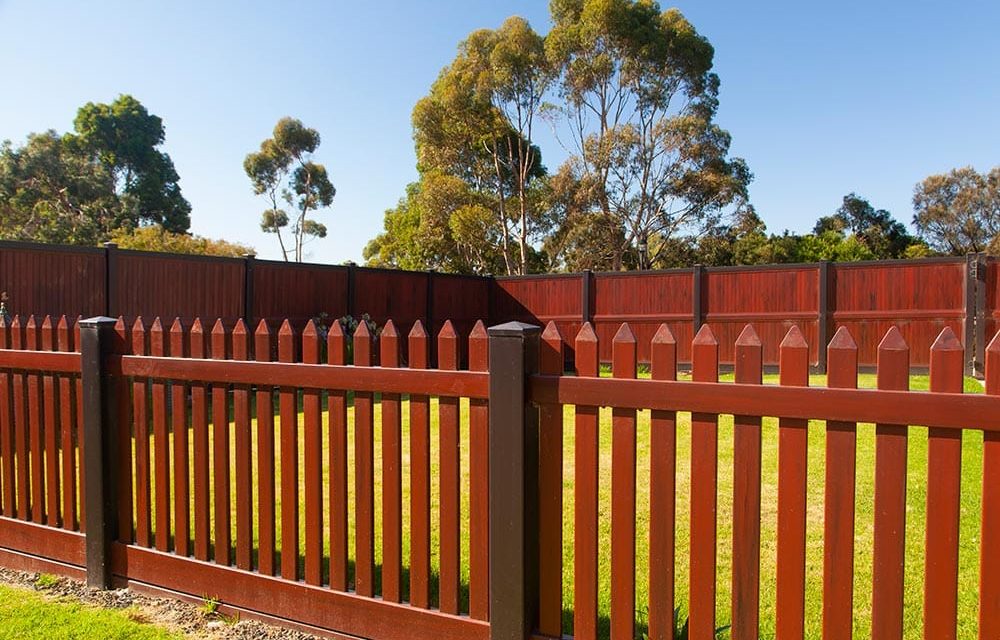

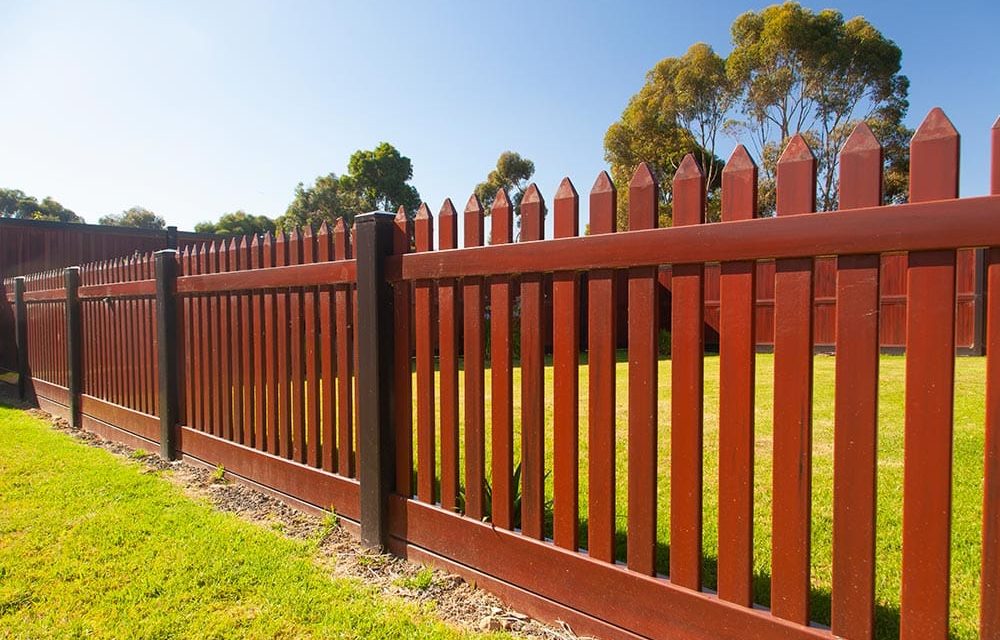

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-2

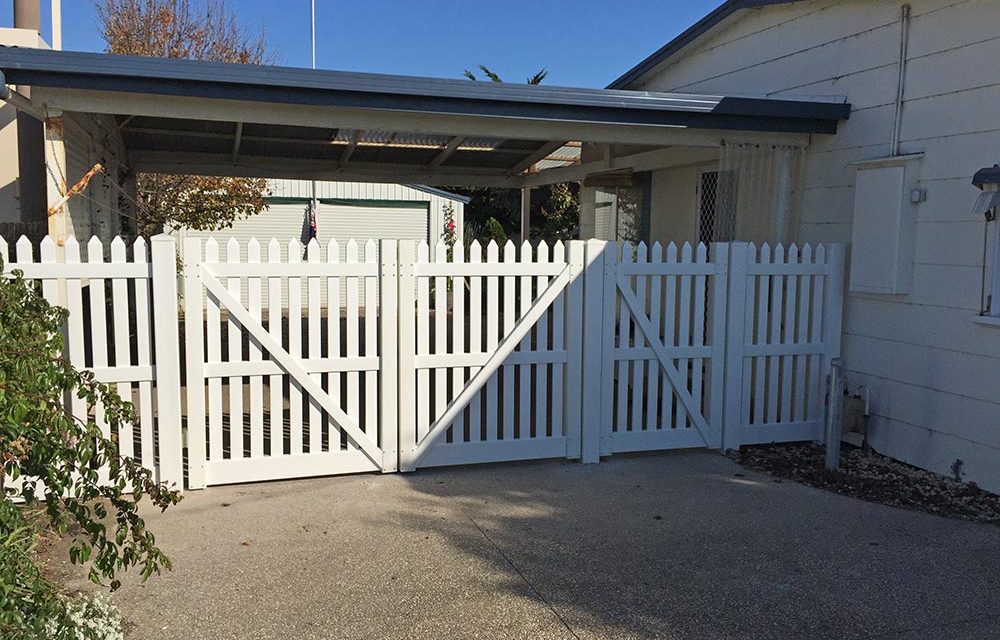

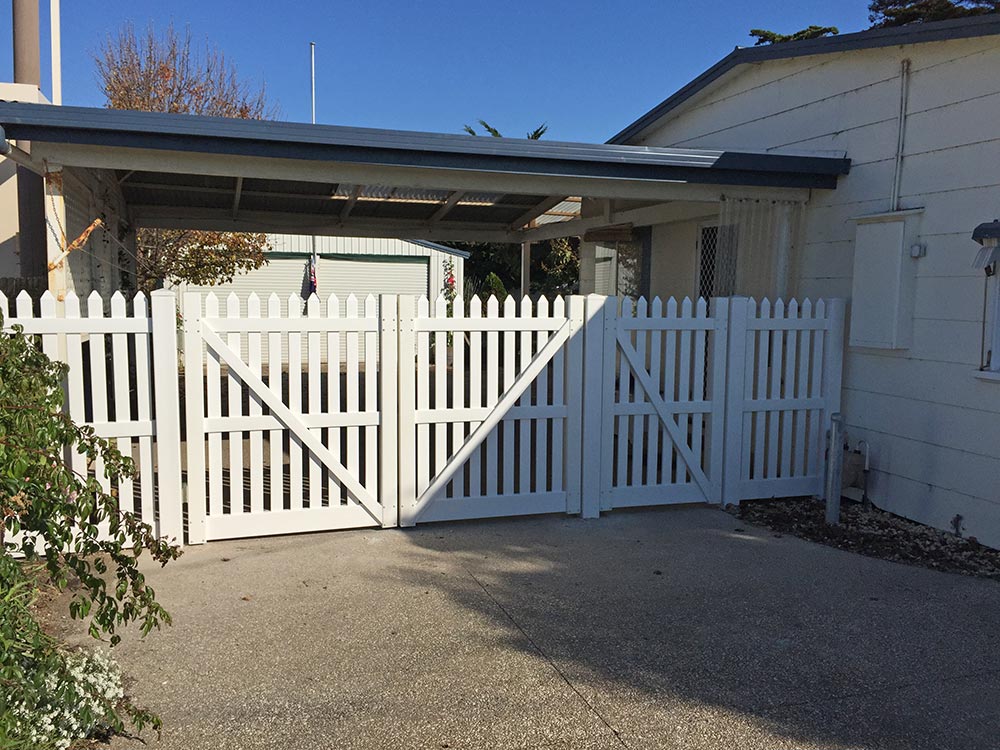

    Think-Fencing-Picket-Fence-Jabiru-White-Gate

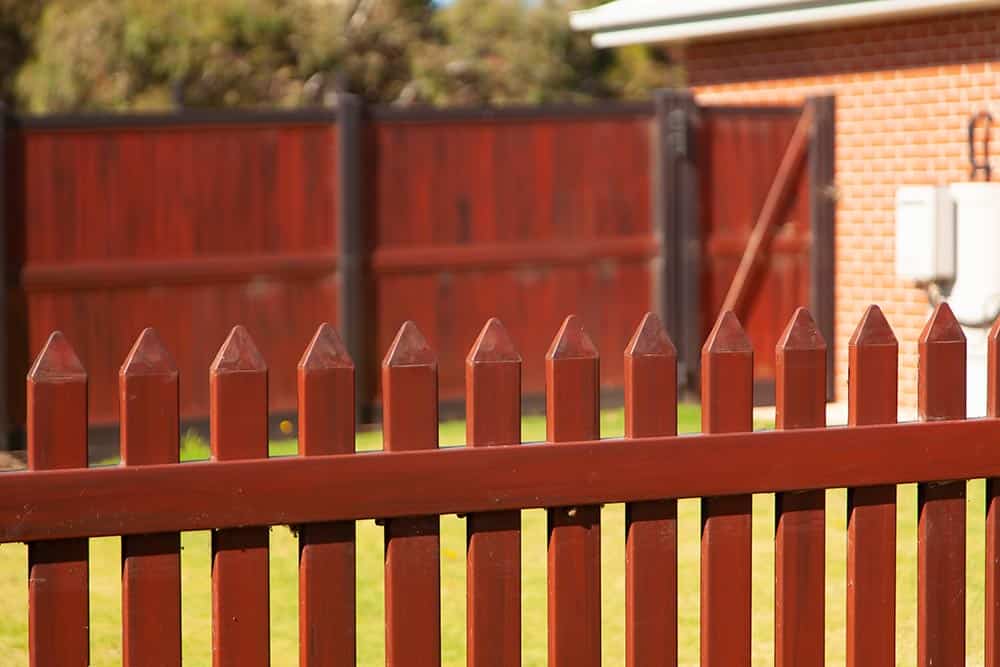

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-3

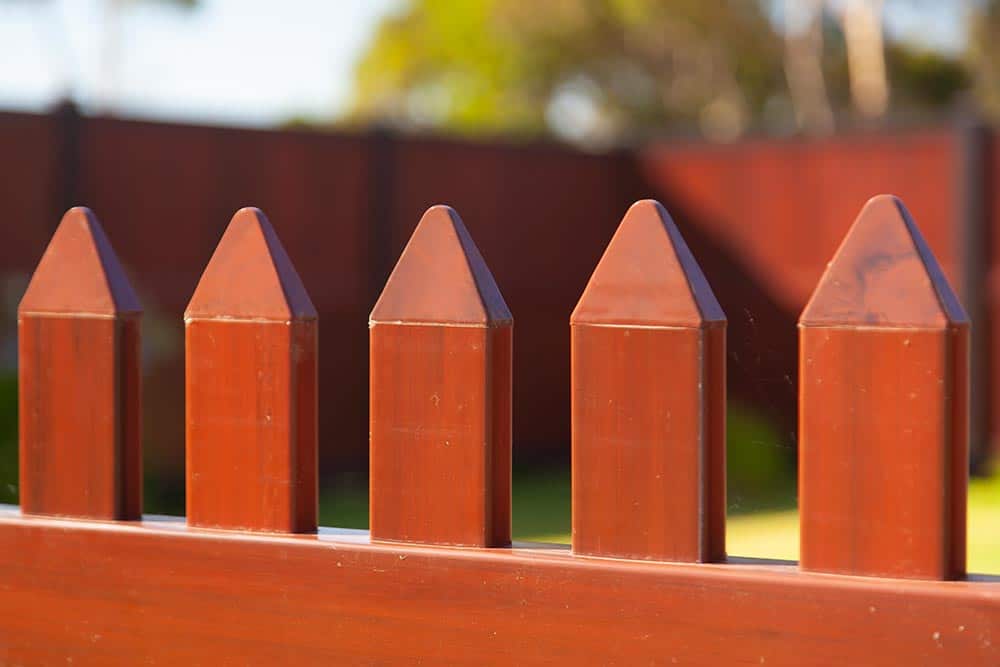

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-7

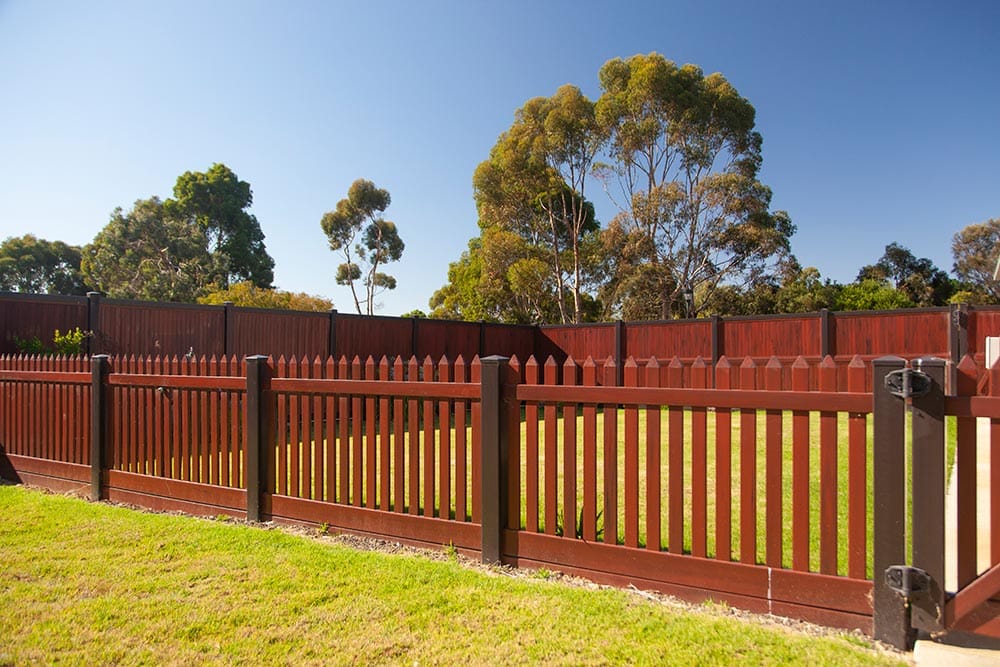

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-6

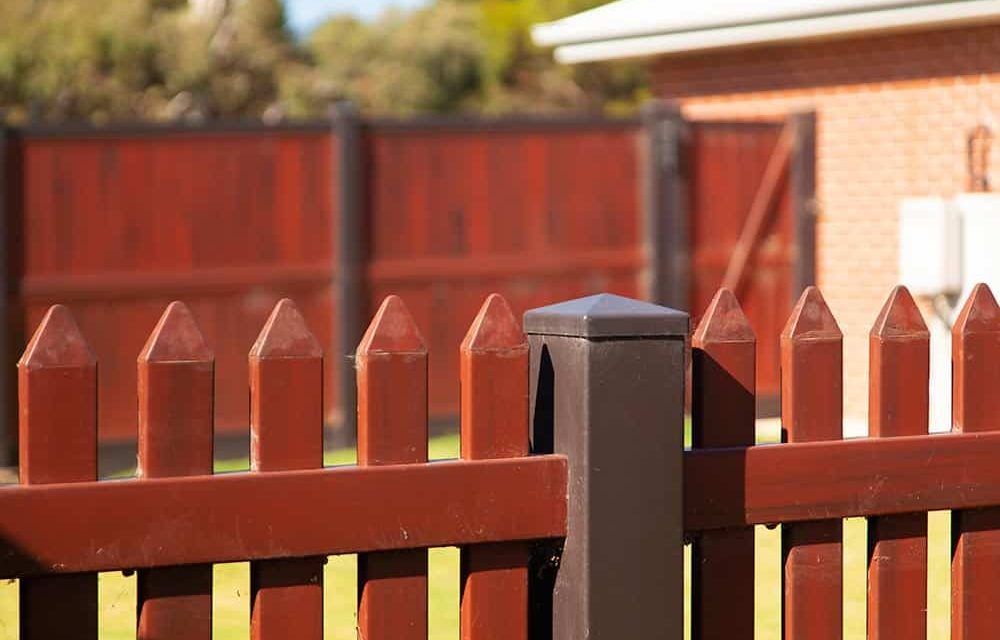

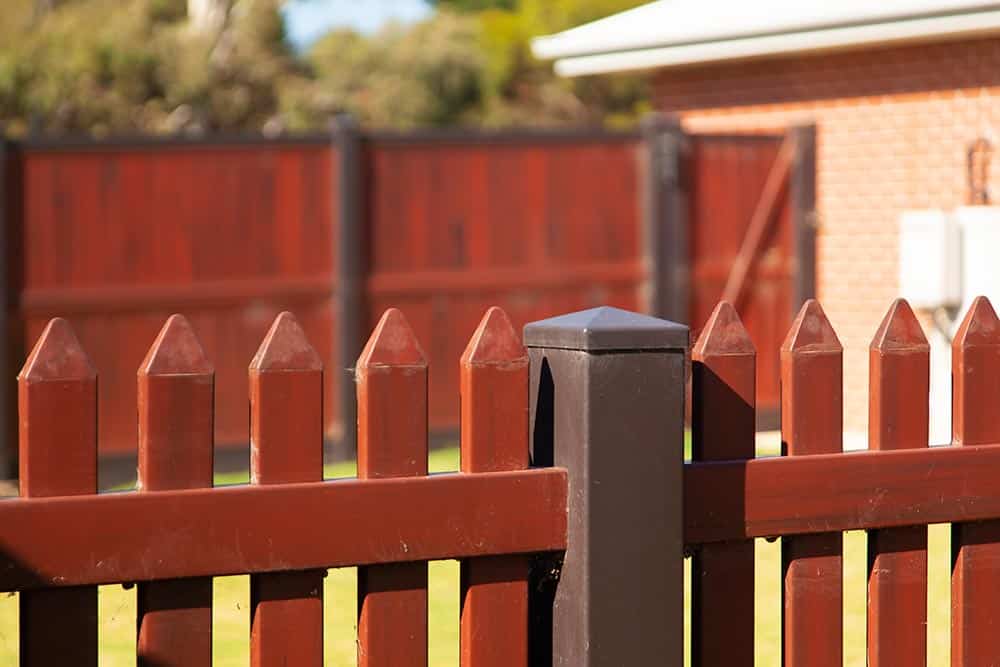

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-4

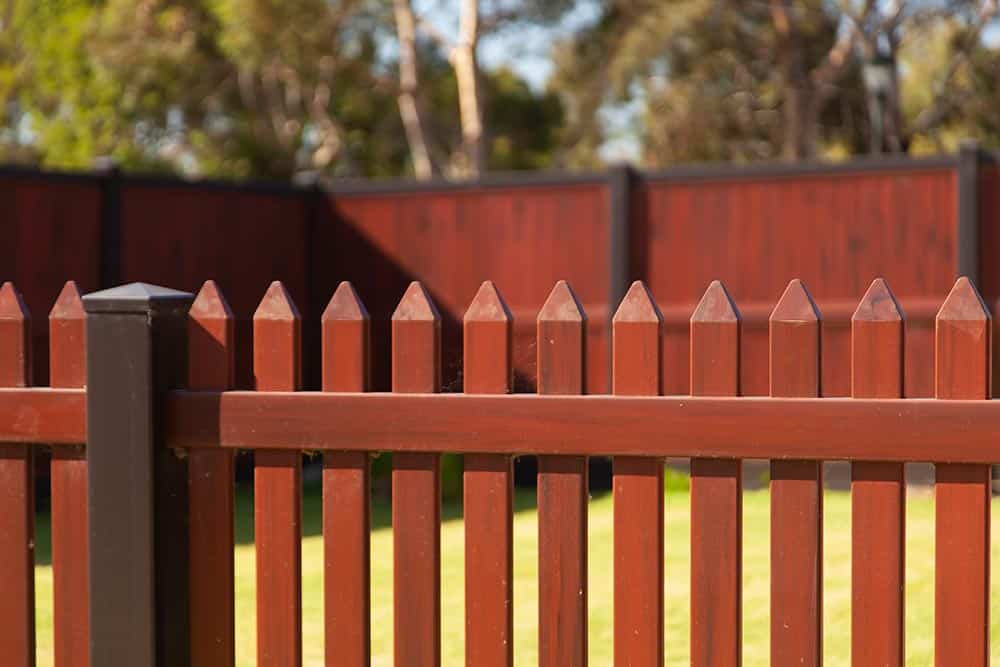

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge-5

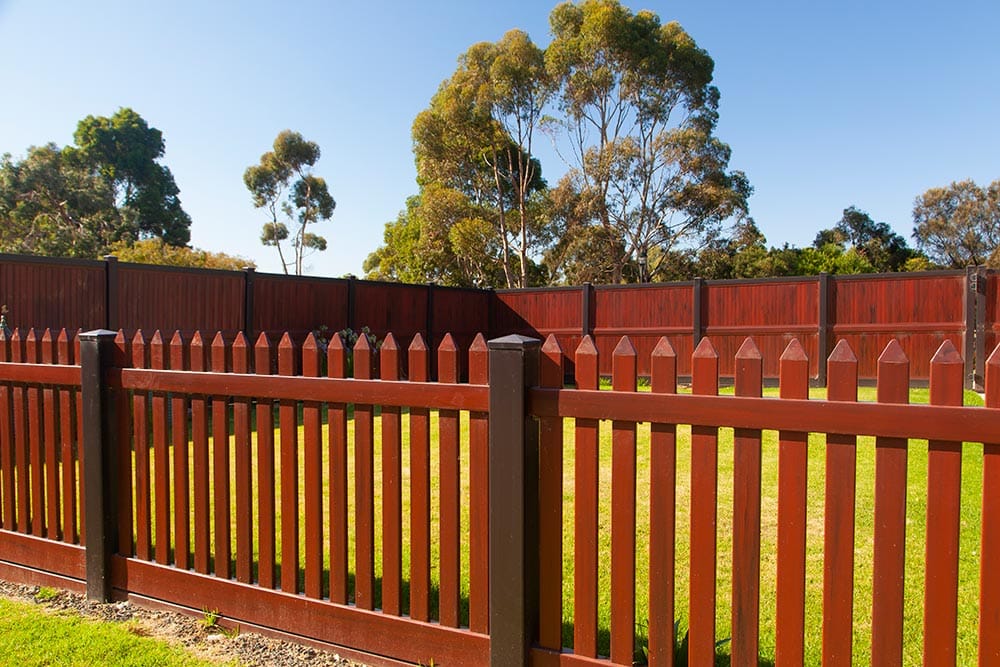

    Think-Fencing-PVC-Jabiru-Picket-Fence-Red-Gum-and-Grey-Ridge

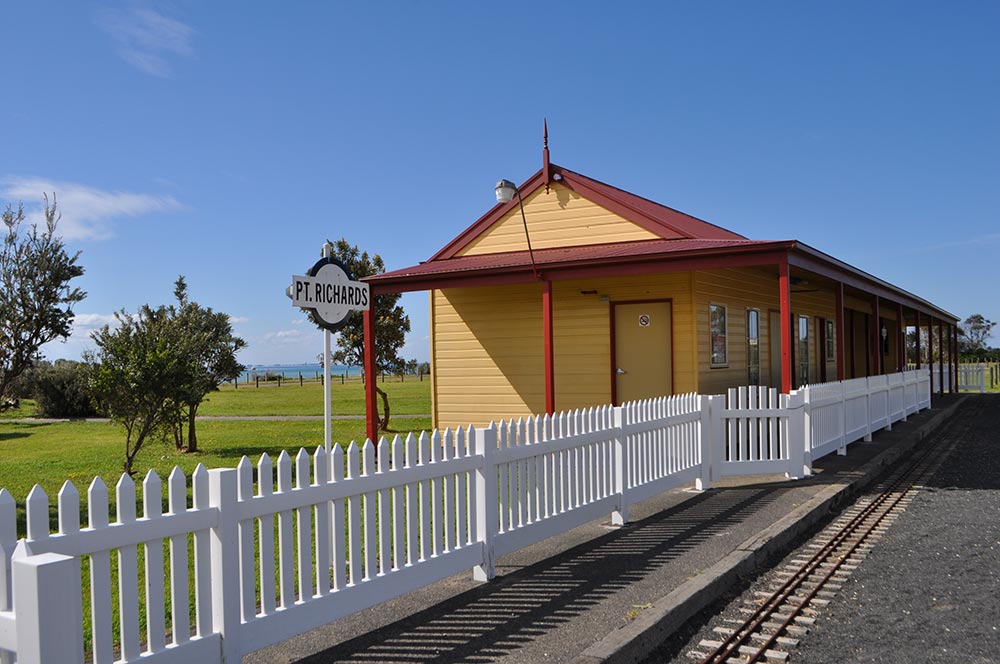

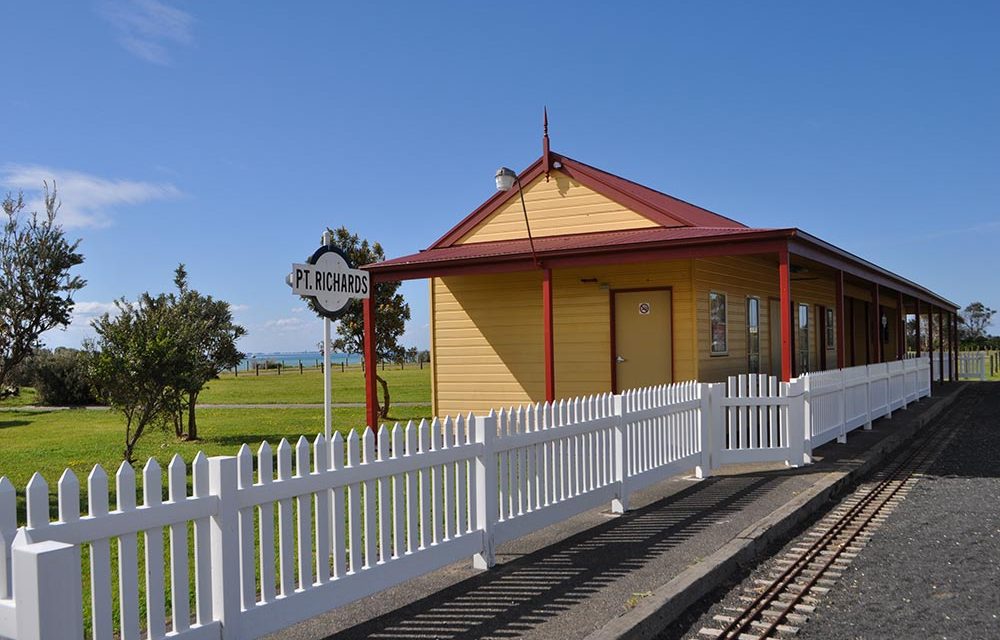

    Think-Fencing-Jabiru-Picket-Fence-White

    Jabiru Picket Fence Specifications

    Jabiru Picket Fence

    Dimensions

    • 2.39m panel width based on (centre of indicative post to post).
    • Panel height measured from ground level to top of post (excluding cap).
    • 127 x 127mm post and post caps are to be purchased separately.
    • Picket Height: Level with post height (including cap).
    • Top Rail Height: 173mm below post (including cap).
    • 50mm gap between ground and bottom of plinth rail.
    • Colour panels have a steel insert in top rail.
    • Custom designs, heights and colours available on request.

    Each Panel Includes

    • 1 x Plinth Rail (150mm x 50mm x 2340mm).
    • 1 x Steel Insert for Plinth Rail.
    • 1 x Top Rail (88mm x 51mm x 2340mm).
    • 1 x Steel Insert for Top Rail – Colours only.
    • 18 x Pickets and Picket Caps (76mm x 22mm) at 45mm spacing.
    • Panel height above 1.5m include a 88mm x 51mm x 2340mm mid rail.

    Please note: posts and post caps are not included in a fence panel, they are to be purchase separately.

    This fence design can be used up to the height of 1.5m.

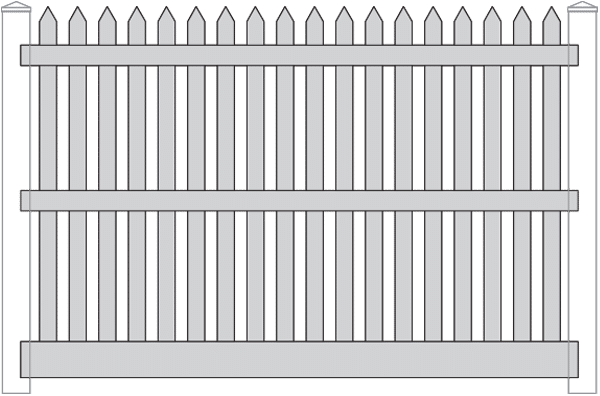

    Above the height of 1.5m requires a mid rail.
